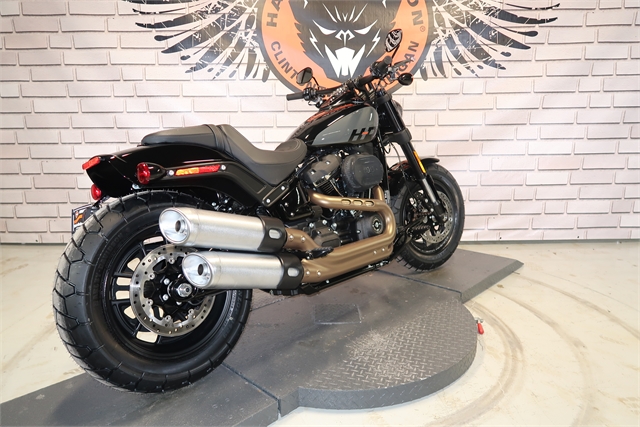

2022 Harley-Davidson Softail Fat Bob 114  Featured

Stock #055074
Your Price: $20,080 USD

178 people have recently viewed it.
Check Availability

Hi, my name is and I'm interested in this 2022 Harley-Davidson Softail Fat Bob 114 . I'm in the area and you can reach me at or by phone at

DESCRIPTION

A street-eater with an appetite for power. Built with muscular style and performance.



THIS IS THE RIGHT BIKE FOR

  • Renegades seeking the utmost power and performance
  • Conquering city streets with power and agility
  • Milwaukee-Eight® 114 V-Twin engine and custom-styled exhaust



MILWAUKEE-EIGHT® BIG TWIN ENGINE

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.


DUAL DISC FRONT BRAKES

These high-performance dual disc brakes help you keep all that power in check when you need to.


2-1-2 EXHAUST

Performance-inspired, upswept exhaust with a custom contrast finish.



RACE-STYLE FORK TECHNOLOGY

Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.

  • Status:
    New
  • Vehicle:
    2022 Harley-Davidson Softail Fat Bob 114
  • VIN:
    1HD1YLK17NB055074
  • Model Number:
    FXFBS
  • Mileage:
    6 miles
  • Color:
    Vivid Black
  • Stock Number:
    055074
  • Location:
    Wolverine Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102.1
  • CAN Liters Per Kilometer (Combined):
    5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.5
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1868
  • Displacement (ci):
    114
  • Engine Brand Name:
    Milwaukee-Eight™ 114
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.5
  • Stroke (mm):
    114.3
  • Torque (Ft Lbs):
    118
  • Torque (Nm):
    160
  • Torque RPM:
    3500
  • US Miles Per Gallon (Combined):
    47
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Steel
  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    28
  • Seat Height (mm):
    711.2
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    5.1
  • Front Travel (mm):
    130
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Size (in):
    2.2
  • Rear Suspension Size (mm):
    56
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    296.2
  • Dry Weight (lbs):
    653
  • Engine Displacement to Weight (cc):
    2.86
  • Fuel Capacity (gal):
    3.5
  • Fuel Capacity (l):
    13.2
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    120
  • GVWR (kgs):
    526
  • GVWR (lbs):
    1160
  • Height (in):
    43.7
  • Height (mm):
    1110
  • Length (ft):
    7.68
  • Length (ft/ft):
    7
  • Length (ft/in):
    8.1
  • Length (in):
    92.1
  • Length (mm):
    2340
  • Payload Capacity (kgs):
    220
  • Payload Capacity (lbs):
    485
  • Wet Weight (kg):
    306.2
  • Wet Weight (lbs):
    675
  • Wheelbase (in):
    63.6
  • Wheelbase (mm):
    1615
  • Width (in):
    37.8
  • Width (mm):
    960

TRANSMISSION

  • Gear Ratio (1):
    9.311
  • Gear Ratio (2):
    6.454
  • Gear Ratio (3):
    4.793
  • Gear Ratio (4):
    3.882
  • Gear Ratio (5):
    3.307
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Harley Davidson Series 150/80 R16 71H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    150
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® Harley Davidson Series 180/70 R16 77H
  • Rear Tire Aspect Ratio:
    70
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
